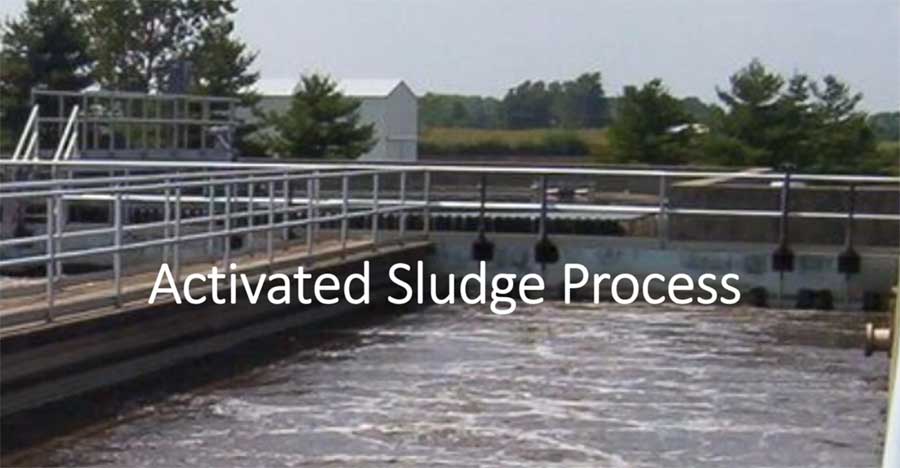

Activated sludge process control connects biological loading, biomass inventory, oxygen supply, settling and solids wasting. No single parameter describes the whole process. Operators interpret flow, BOD5 or COD, ammonia, dissolved oxygen, MLSS, MLVSS, RAS, WAS, settleability and effluent quality as a set of related trends. The substrate and solids bases must be stated because BOD and COD are not interchangeable without a defined conversion or design basis.
The same discipline is required before declaring a blower undersized. Low dissolved oxygen may reflect high biological demand, insufficient airflow, fouled diffusers, an air leak, poor branch distribution or a faulty probe. Compare airflow, pressure, speed and power at a comparable process state, then combine those measurements with process data before changing equipment. This separates an air-system problem from a genuine capacity shortfall.
Build an Activated Sludge Process Control Framework
Reliable activated sludge process control starts with consistent sampling locations, units, time bases and a declared process boundary. A daily influent load should be compared with a solids inventory representing the same boundary. Online sensors need cleaning, calibration and validation against laboratory or portable measurements. Timestamps, data gaps, instrument status and control-system quality flags also matter when the data are used to command blower speed. Data quality is part of process control, not an administrative detail.
Define minimum, normal and maximum operating cases instead of reacting to every instantaneous value. Seasonal temperature, industrial batches, wet weather, basins out of service and solids-handling returns can change demand. For each case, state the expected process response, allowable DO range, blower control action and alarm or fallback state. The strategy should preserve the intended aerobic and anoxic zones while keeping mechanical equipment inside its approved envelope.
Use Dissolved Oxygen as a Local Process Measurement
Dissolved oxygen shows the oxygen remaining in mixed liquor at the probe location. The appropriate target depends on carbon removal, nitrification, anoxic-zone protection, reactor configuration, temperature and control objective. A target should therefore be defined by zone and operating mode, not copied as a mandatory fixed value for every plant. Probe location, response time, calibration status and local mixing also affect what the reading represents.
Persistently low DO can restrict aerobic reactions, but unnecessarily high DO can waste power and carry oxygen into an anoxic zone, reducing the intended anoxic condition. Airflow feedback measures the manipulated variable directly, while DO feedback measures the process response. Either loop requires validated sensors, defined limits and an appropriate response to sensor failure. Multiple probes or profile testing may be needed where loading and transfer conditions vary along the basin.
Calculate and Trend F/M with a Defined Load Basis
The food-to-microorganism ratio compares an applied biodegradable substrate load with the selected organic-solids inventory. With consistent units, a common expression is F/M = (Q × S) / (V × X). Here Q is the flow entering the defined treatment boundary, S is the selected biodegradable BOD5 or COD basis, V is the relevant aeration volume and X is the selected MLVSS concentration. State whether S represents influent, primary-effluent or another process load, and keep the numerator and denominator on the same boundary and time basis.
F/M does not determine blower airflow by itself. Oxygen demand may also be assessed with oxygen uptake or respiration information and must then be converted to field air demand using the diffuser system, wastewater conditions and site corrections.
The sampling point and substrate basis must remain consistent. MLVSS is a practical proxy for organic biological solids, not an exact count of living cells. F/M is best used as a plant trend and interpreted with removal, temperature, SRT, oxygen uptake, settleability and toxicity or industrial-load information rather than as a universal pass/fail number.
Define the SRT Mass-Balance Boundary
Solids retention time, also called mean cell residence time, is the solids inventory inside a defined biological boundary divided by the solids mass leaving that boundary each day: SRT = system solids inventory / (WAS solids per day + effluent solids per day + any other defined solids loss). Include every relevant tank and loss stream consistently. Return activated sludge is an internal recycle and is not a solids loss unless the chosen boundary makes it one.
SRT influences biomass yield, nitrification capacity and sludge character. The appropriate range depends on temperature, wastewater, process configuration and treatment objective. A mass balance built from inconsistent concentrations, flow times or omitted sidestream losses can create a precise-looking but misleading result. Because solids-wasting changes take time to affect inventory, adjust the operating strategy gradually and judge the response from trends rather than one sample.
Interpret MLSS MLVSS and SVI with Site Specific Context
MLSS measures total suspended solids in mixed liquor. MLVSS measures the volatile fraction and is often used as an operational estimate of organic biological solids. Neither measurement is an exact count of active microorganisms. Their relationship can change with inert solids, industrial influent, chemical addition, mineral precipitation and process condition, so the sampling and laboratory method should be kept consistent.
Sludge volume index normalizes the volume settled in a 30-minute test: SVI (mL/g) = [SSV30 (mL/L) × 1000] / MLSS (mg/L). Test vessel, sample condition, dilution, stirring and temperature affect the result. Use SVI as a consistent trend and interpret it with clarifier loading, blanket depth, floc structure and microscopic or other diagnostic observations. Fixed worldwide “good” and “bad” bands can mislead, and a diluted or modified test must be identified rather than compared silently with a standard test.
Distinguish Biological Demand from Air-System Resistance
In activated sludge process control, low DO with higher load and a proportional airflow response may indicate genuine biological demand. At comparable blower speed and process state, rising header pressure with falling airflow suggests increasing resistance, such as diffuser fouling or a closed valve. Low pressure with poor delivery can point to leakage, an open bypass, low speed, inadequate distribution or measurement error. The comparison must use validated instruments and the same reference basis.
Transfer deterioration does not always produce a large pressure change, so activated sludge process control should also trend ammonia, effluent quality, oxygen uptake where available, diffuser maintenance and transfer testing. Check probe calibration, branch flows, valve positions and inlet or discharge measurements before increasing machine speed or purchasing a larger blower. If the process signal and air signal disagree, treat the disagreement as a diagnostic finding rather than immediately as a capacity shortfall.
A practical diagnostic sequence is: validate the instruments; confirm the process load and zone target; compare branch airflow and header pressure at the same machine state; inspect valves, leaks and bypasses; then assess diffuser condition and biological oxygen demand. Escalate to a larger blower only after those checks are consistent.
- Influent flow and mass loading, including BOD5 or COD, ammonia, temperature, pH and alkalinity
- DO by zone with probe location, cleaning, calibration, validation and timestamp records
- MLSS, MLVSS, RAS, WAS, SRT, settleability, clarifier blanket and relevant sludge-quality observations
- Airflow by major branch, header pressure, blower speed, inlet condition and operating mode
- Motor current or power, discharge temperature, inlet-filter condition and alarm history
- Diffuser type, airflow range, cleaning history, fouling indicators and valve-position baseline
- Simultaneous basins, industrial batches, sidestream returns, wet-weather conditions and out-of-service equipment
- Ammonia, nitrate or other permit-relevant process responses linked to the same operating period
- Instrument data quality, communication status, missing data and control-loop permissives
- Documented process and blower duty points for commissioning, troubleshooting and future capacity planning
Convert Activated Sludge Process Control Trends into Blower Duty
Use activated sludge process control trends to validate and refine blower duty points, not to replace process design. Define credible minimum, normal and maximum airflow at the corresponding differential pressures, inlet conditions and process modes. Convert biological oxygen demand into required field airflow using oxygen-transfer and diffuser data with the stated wastewater and site corrections. The maximum point must satisfy motor, speed, pressure and discharge-temperature limits; the minimum point must respect mixing, diffuser distribution and permitted blower speed.
Pasifik Blower can evaluate two-lobe and three-lobe Roots blower arrangements for those duty points. Variable-speed control or machine staging can follow an airflow or DO command within defined bounds, provided the sensors, permissives, minimum speed, pressure, power and temperature limits are respected. Long-term activated sludge process control records also support capacity planning: they show whether demand growth is biological, hydraulic or caused by deteriorating air-system performance.
For an RFQ, provide the process operating matrix, oxygen-demand basis, diffuser data, minimum mixing case, paired flow-pressure points, flow reference conditions, duty/standby philosophy and required control interfaces. A blower quotation should return model-specific performance, absorbed power, speed, temperature and package limits for those same cases.
Glossary
Biochemical oxygen demand (BOD5): Oxygen demand associated with biodegradable material measured under a defined five-day test basis; the exact sample and reporting basis must be stated.
Chemical oxygen demand (COD): Oxygen-equivalent measure of material oxidizable under a defined chemical test; COD is not automatically interchangeable with BOD5 for process loading or F/M calculations.
Clarifier blanket: Layer of settled solids accumulated in a clarifier, measured at a defined location and used with other observations to assess solids separation.
Data validation: Process of checking an instrument or data stream against calibration, plausibility, timing and an independent measurement before using it for control or diagnosis.
Dissolved oxygen (DO): Concentration of molecular oxygen dissolved in mixed liquor at a defined measurement location, temperature and operating condition.
Food-to-microorganism ratio (F/M): Applied biodegradable substrate load per unit mass of selected organic solids under a stated process boundary, substrate basis and time basis.
Mean cell residence time (MCRT): Another term for solids retention time when the same biological boundary, inventory and solids-loss mass balance are used.
Mixed liquor suspended solids (MLSS): Total suspended-solids concentration in activated-sludge mixed liquor, including volatile and inert fractions.
Mixed liquor volatile suspended solids (MLVSS): Volatile fraction of MLSS used as an operational proxy for organic biological solids; it is not identical to viable biomass.
Oxygen transfer rate (OTR): Rate at which oxygen is transferred from the air system into the mixed liquor under stated field conditions.
Process boundary: Explicit set of tanks, recycle streams, effluent streams and solids-loss streams included in a process-control calculation.
Settled sludge volume (SSV30): Volume occupied by a defined mixed-liquor sample after 30 minutes of settling under a stated test procedure.
Sludge retention time (SRT): Average time solids remain within a defined biological boundary, calculated from solids inventory and daily solids loss.
Sludge volume index (SVI): Thirty-minute settled volume normalized by MLSS concentration and expressed in mL/g under a stated test method.
Solids wasting: Controlled removal of biological solids, normally through WAS, to regulate solids inventory, SRT and process condition.
